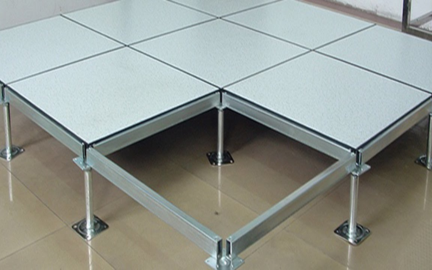

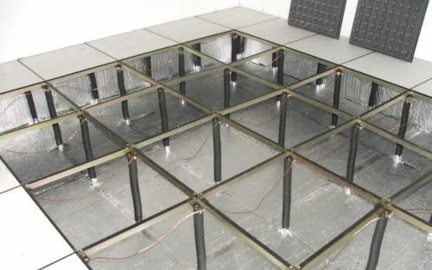

A raised access flooring system is an elevated floor that is laid above a sub floor, often a concrete floor slab, in order to leave an open space or void between. Raised floor systems are sometimes referred to as access floors, raised access floors, platform floors, computer floors or suspended flooring.The space created between the two floors is used to house cabling and pipework required to distribute services around a building. These services can include Electrical power, Network data and telecommunication cabling, CCTV, Water supply and drainage, Air conditioning, heating and ventilation, Security cabling, Environmental controls, Fire detection and suppression etc.
Steel Cemetious panels are made from hight quality deep stretch coil steel sheet and SPCC steel which is pan formed and joinedusing resistance welding. It is then coated with epoxy paint and infilled with cement. These are ideal for general offices, allowing flexibility in installation as per requirement. It’s screw down design supports the system effectively and makes the installation convenient and stable. With good loading capacity, these have excellent fire resistance and can be interchanged with ease.
The easy installation properties of High Pressure Laminate (HPL) Steel Cementious Panels makes them suited for Data Centers, Communication Centers, Computer Rooms in large projects especially in the infrastructure sector. These have excellent rolling load and optimised load performance. The light weight cement makes them durable and quiet with the epoxy paint finish assuring long term protection. Providing high dimensional stability, these are flame retardant, anti-skid and dust proof.
Made with advanced technology, Wood Core Access Floor Panels comprises a high density chipboard core. The panel is encapsulated with high quality galvanised steel to provide full encasement. Wood core access floor panels are environment friendly with class A frame spread rating. These offer excellent durability, rigidity, and acoustic performance.
With a high density calcium sulphate core, the surface can be bonded with high pressure laminate and consuctive PVC while the bottom is bonded with high quality galvanised steel. All four sides are glued with conductive PVC eding strips. These are anti-static, which makes them most suitable for Telecommunication rooms. Power stations, Computer Rooms, factory Clean rooms and other such spaces.
Panel | Concentrated Load(Kg/Sq in) | Uniform Distribution Load(Kg/Sq m) | Ultimate Load(Kg) | Rolling Load(1000 Passes) | Type |
---|---|---|---|---|---|
800 Grade | 360 | 1350 | 900 | 272 | Normal | 1000 Grade | 450 | 1550 | 1220 | 362 | Strong | 1250 Grade | 562 | 1700 | 1463 | 459 | Heavy | 1500 Grade | 675 | 2025 | 1850 | 566 | Extra Heavy |
